Cab Console

Front controls

A few things needed to be added to the vehicle cab by way of power, controls and indicators.  These included:

  • Drain valve control

  • Tank senor monitor

  • Collision sensor speakers

  • Power

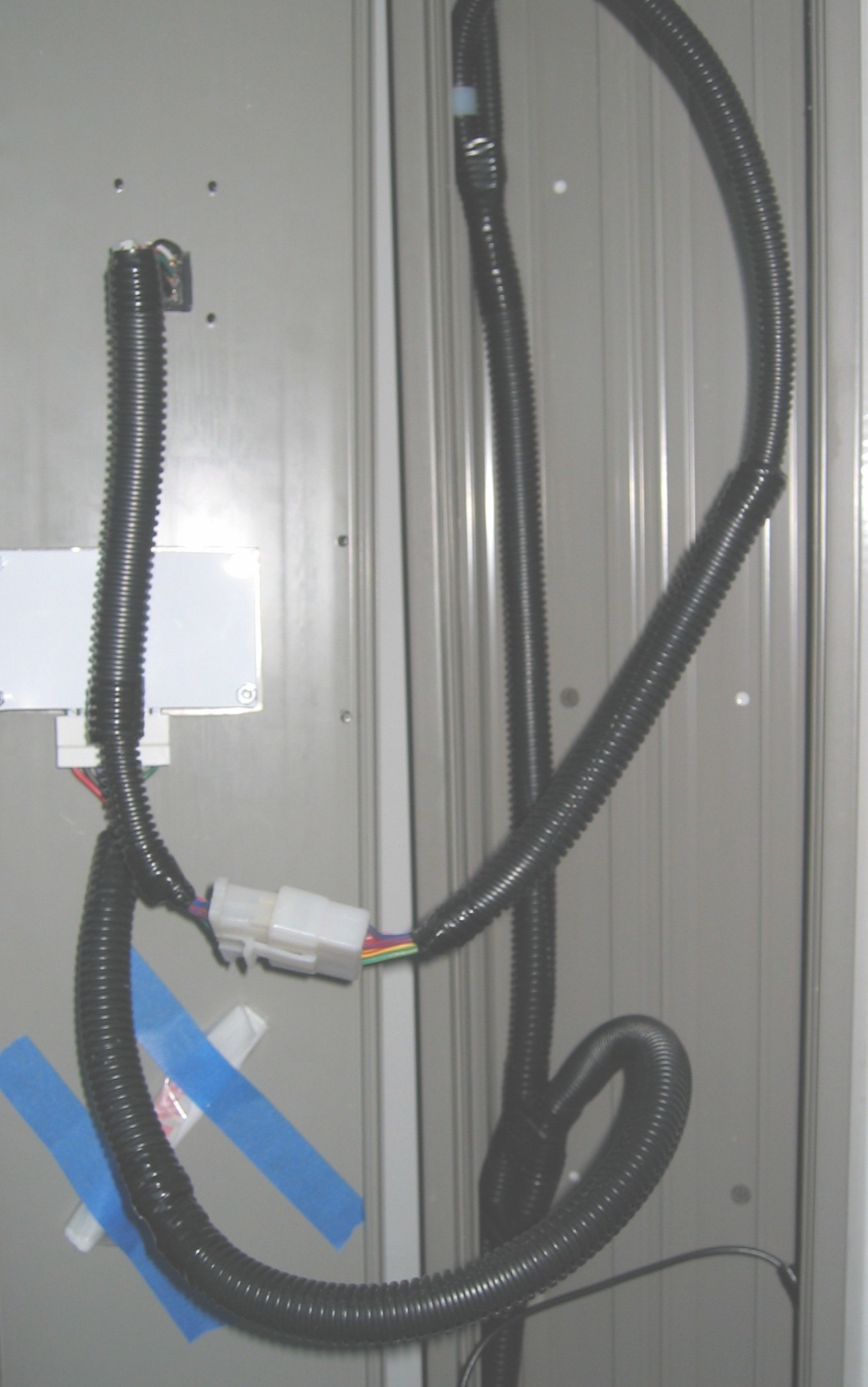

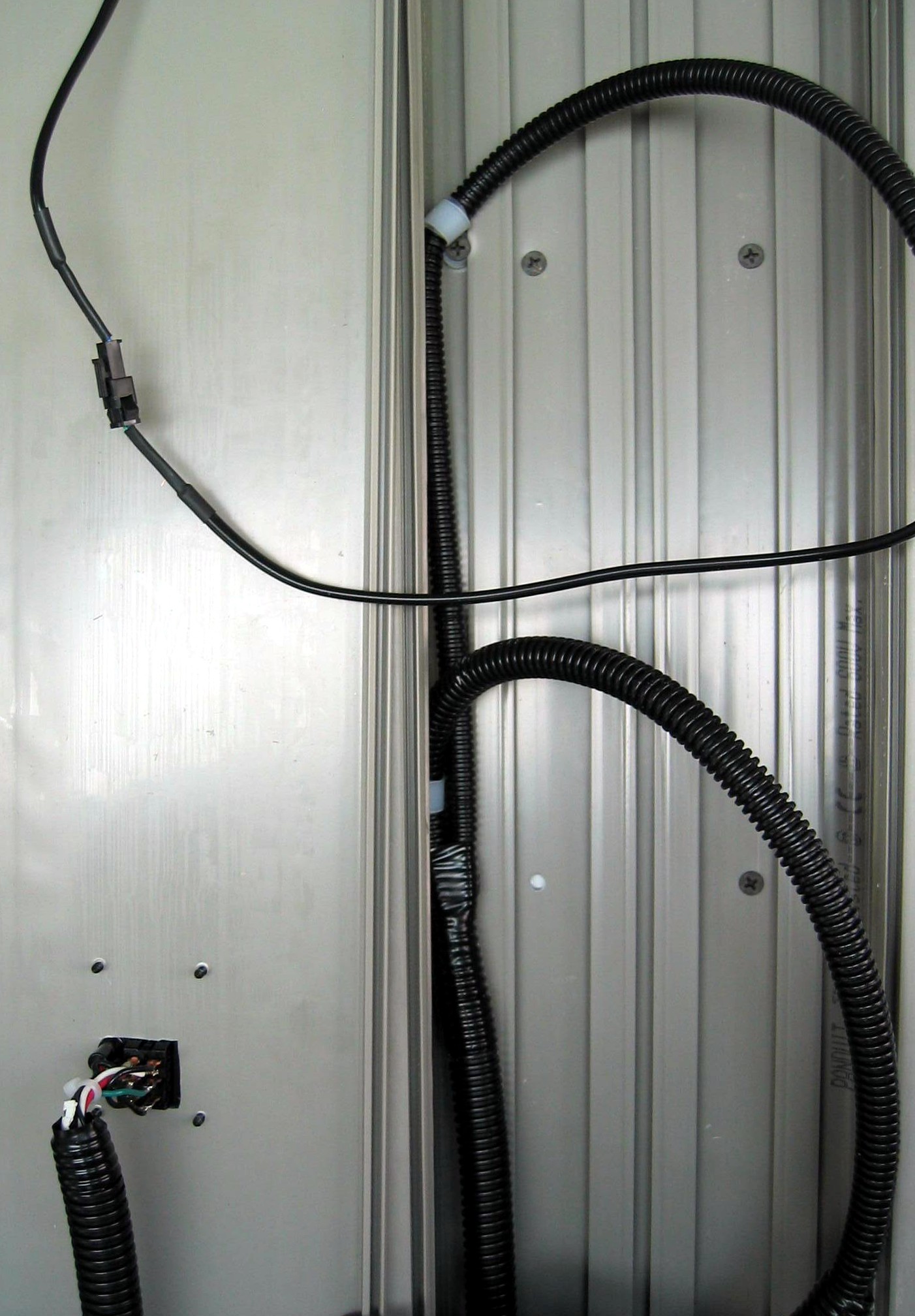

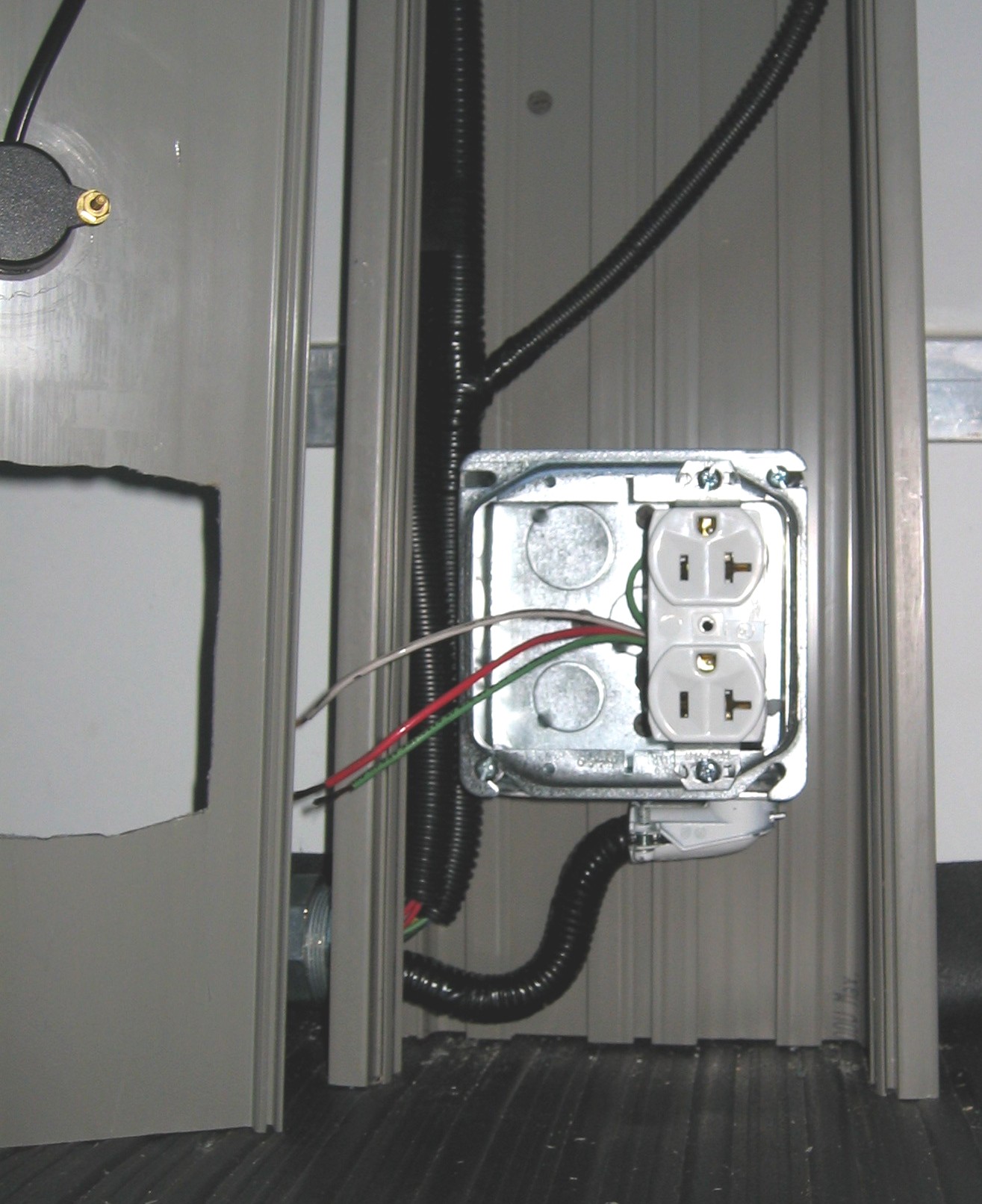

Wiring for these runs through the cab floor in a 3/4" conduit and into a vertical console on the rear of the cab.  The console is actually a piece of Panduit raceway.  It is six inches wide and comes in lengths of six feet.  Below are some photos from the installation.

Inside Outside
  Top
  Middle
  Bottom

Connection details of the various devices are on their respective system's pages.
